Система накопления энергии на основе аккумулятора, в котором энергия запасается в химическом виде в растворе электролита
Advantages
Lowest LCOS (10 years lifecycle) among electrochemical energy storage systems
Capacity and energy density can be increased independently from each other
Service interval 1 year
High cyclical resource – up to 20 000 cycles (20 years)

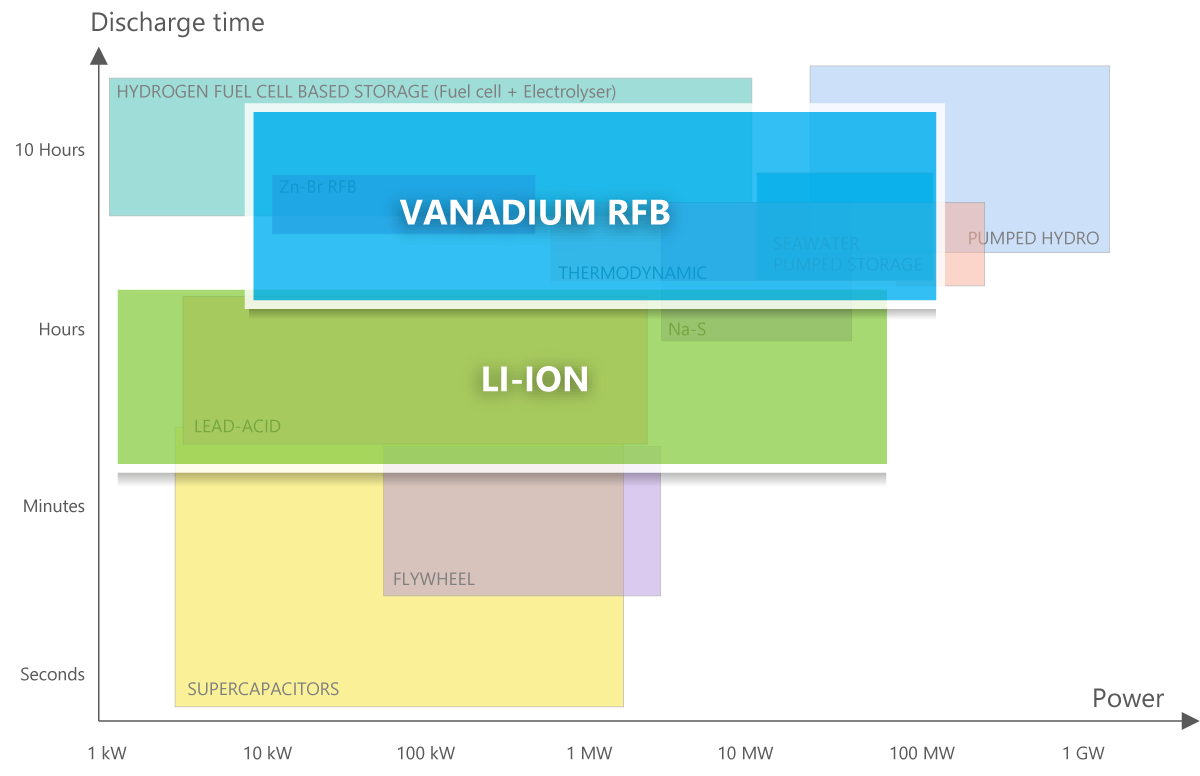

Условия эффективного применения батарей различных видов:
Проточные батареи наиболее эффективны в продолжительных периодах работы. Это объясняется большим ресурсом работы электролита и возможностью наращивать емкость независимо от мощности
Литий-ионные батареи могут быть включены и выведены на номинальный режим быстрее проточных. Поэтому их применение может быть более кратковременным
Гибридные системы с использованием обоих типов батарей позволяют достичь наилучших экономических показателей и обеспечить плановое функционирование объекта с минимальными затратами на энергоснабжение
Redox flow battery is an electrochemical storage device where energy is stored in electrolytes due to the reduction-oxidation (redox) reactions that occur in them under the influence of an electric current.
A unique feature of flow batteries is the independence of the storage capacity of a battery from its output capacity The storage capacity is determined by the volume of the electrolyte, and the output capacity is determined by the discharge characteristics of the membrane-electrode block, where chemical energy of the electrolyte is converted into electrical energy.
Redox flow batteries are scalable and can be easily adapted to the needs of the consumers. The operating temperature range can be adapted to specific requirements by changing the composition of the electrolyte and is in the range from 30 to 50 °C.
